Top Lid and Bottom Tray Former RH-212
The tray former can fold top cover and base with quick changeover and adjustment.
According to customers' needs, different size boxes can be folded in one machine.
According to customers' needs, different size boxes can be folded in one machine.
Application :
- Gift Box
- Golf Accessories
- Toy Box
- Pharmaceutical Items.
- Hardware Box
Specification :
| Product | Top Lid and Bottom Tray Former |
| Model no. | RH-212 |
| Power source | AC220V, 3 phase |
| Electric | PLC |
| Air pressure | 6kg/cm2 |
| Carton magazine | 250~350 mm |
| Machine dimension | 1880(L)*1016(W)*2007(H) mm |
1. Speed : 15~20 pcs/ per minute

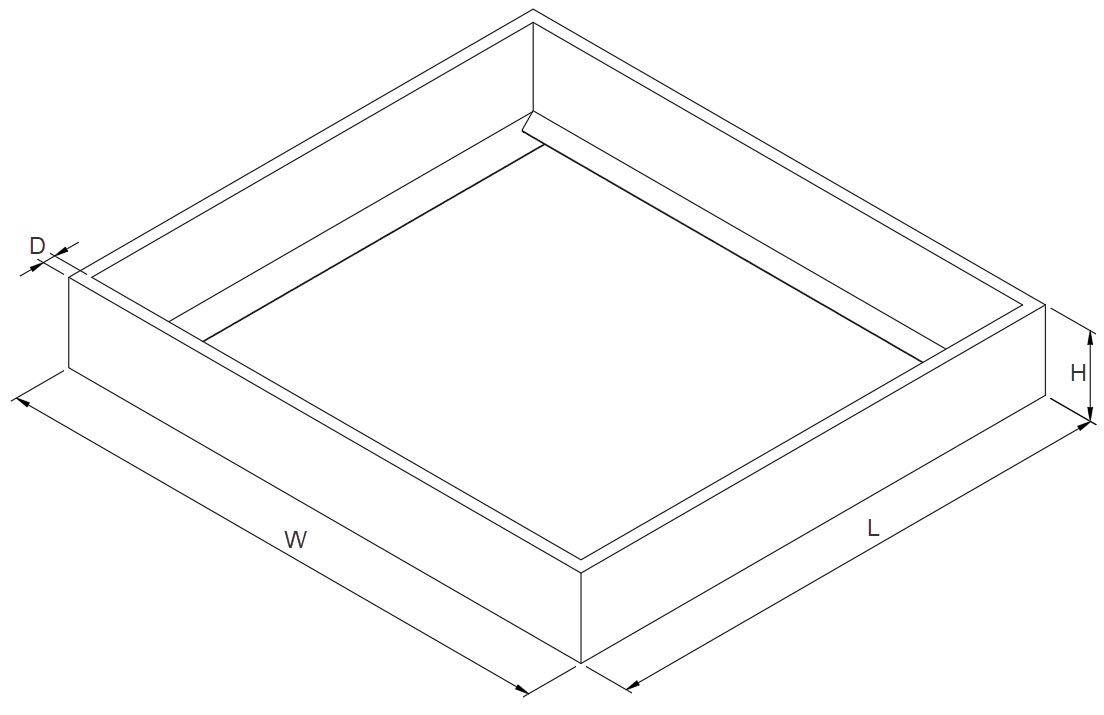

2. Carton size range : W:150~300 mm/ L:120~250 mm/ H: 30~50 mm/ D=5~7 mm
.jpg)
Features :
1. PLC control system with high precision forming.
2. User friendly with HMI interface design.
3. One machine for top lid and base case.
4. Quick changeover and adjustment.
5. Custom fabrication is available for various sizes.

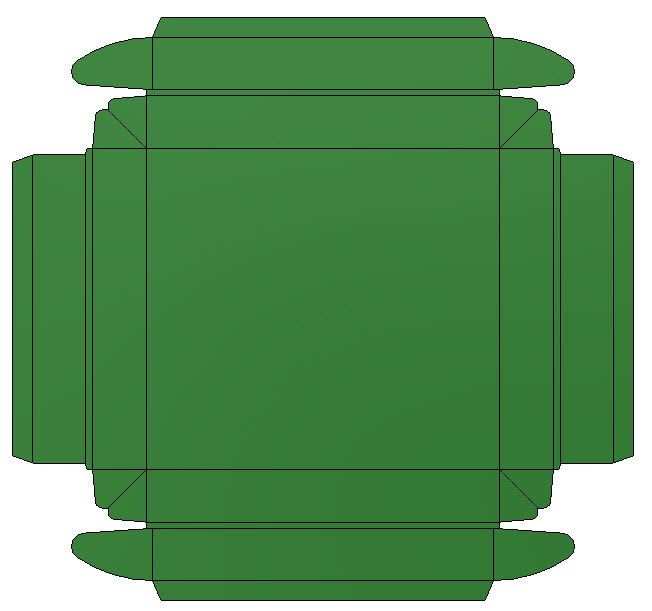

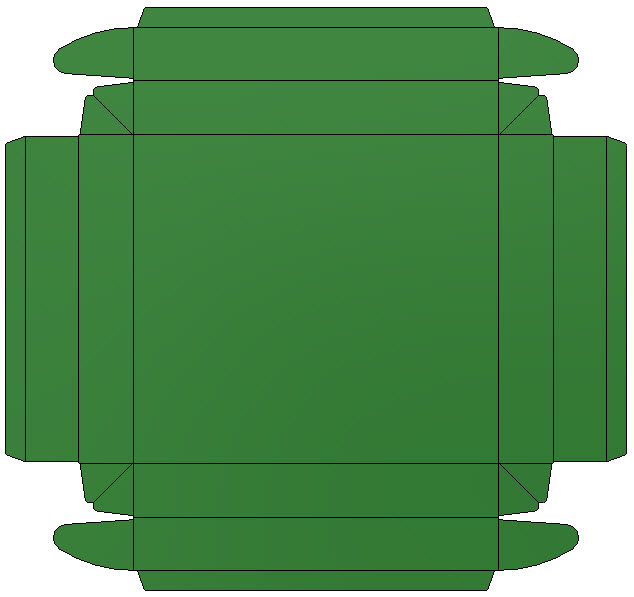

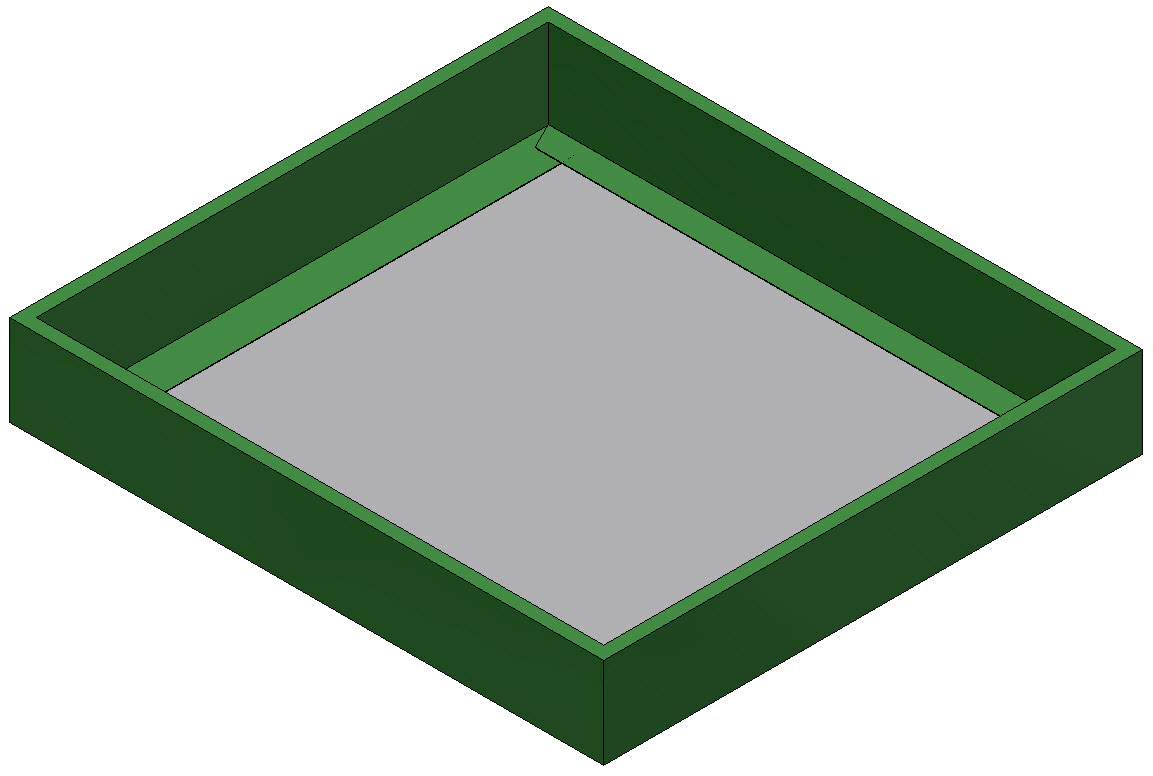

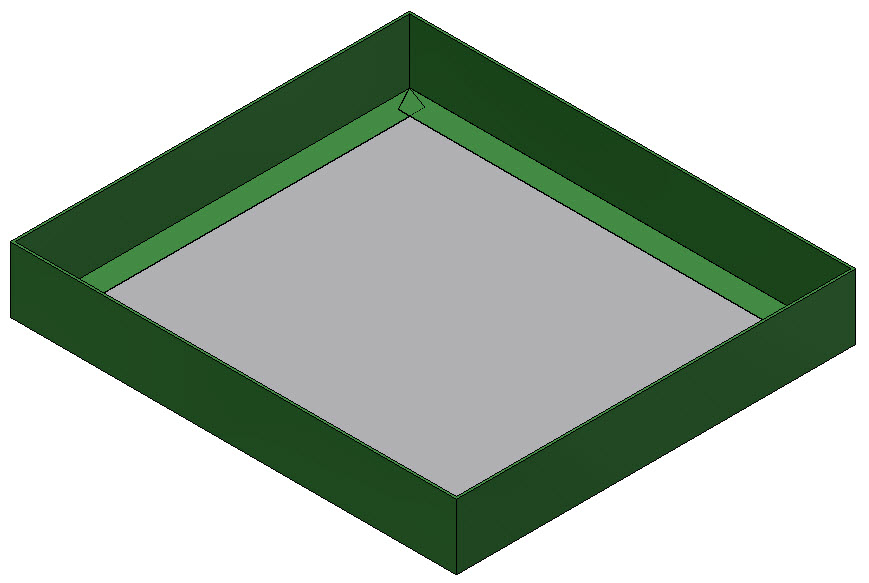

Box samples :
-%E6%88%90%E5%9E%8B%E7%B4%99%E7%9B%92(1).jpg)
-%E6%94%A4%E5%B9%B3%E7%B4%99%E7%9B%92(1).jpg)
-%E6%88%90%E5%9E%8B%E7%B4%99%E7%9B%92(1).jpg)
-%E6%94%A4%E5%B9%B3%E7%B4%99%E7%9B%92(1).jpg)

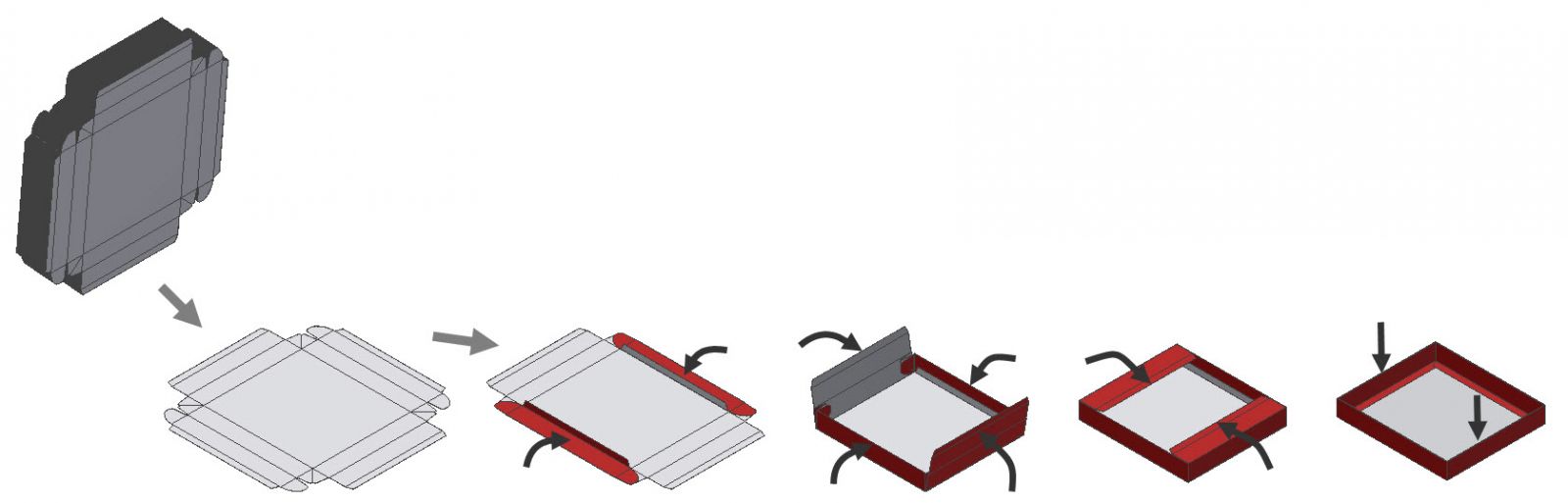

Process :
