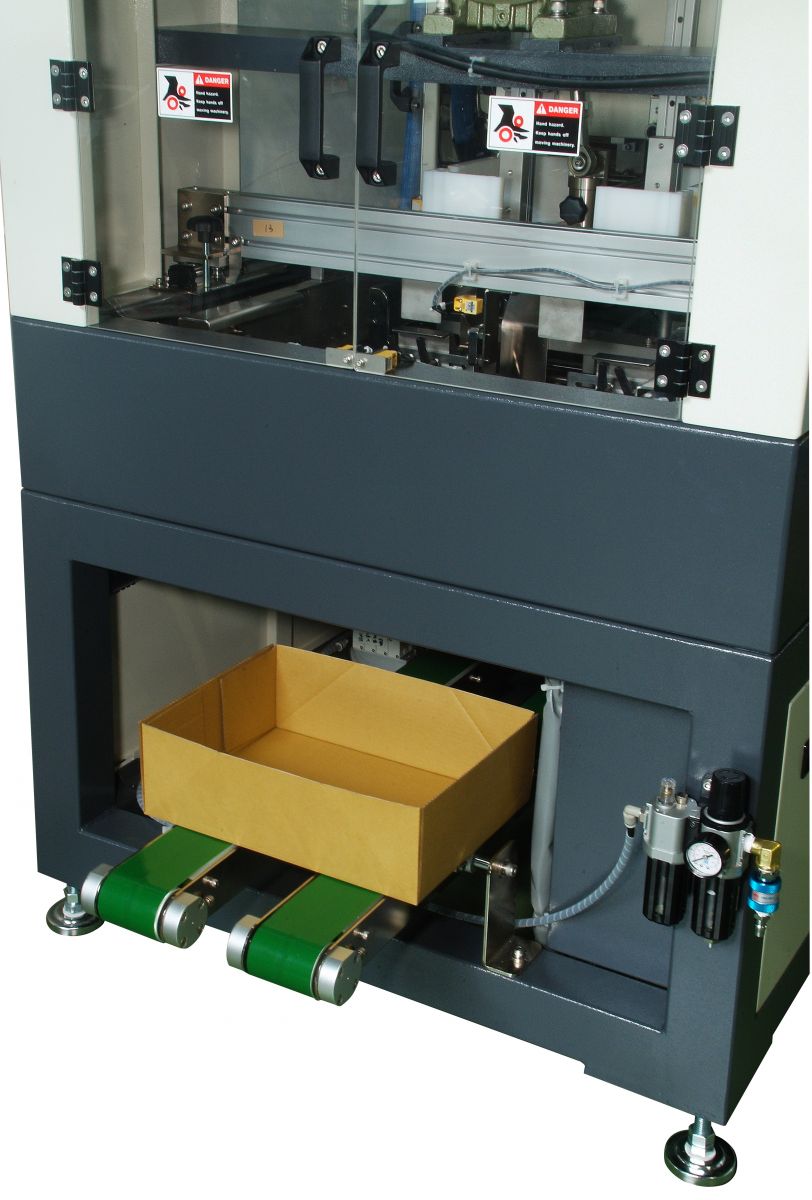

Corrugated tray former RH-400

A tray is formed from a carton blank. The four corners are sealed by hot-melt adhesive.
Features :


1. Painted steel construction.(Stainless is optional.)


2. Nordson hot melt glue system.


3. Fuji PLC control system with touch screen Mitsubishi HMI.


4. High speed PLC-controlled electric installation. The forming carton
    is accurate.


5. Mechanical and pneumatic operation.


6. Carton magazine : 250 - 300 mm (Carton magazine size is decided
    by thickness of carton.)


7. Carton size range :
    W : 300 - 390 mm     L : 200 - 290 mm     H : 30 - 120 mm


8. Carton size is adjustable and easily change carton size.


9. To change carton time is around 10 - 15 minutes.


10. Safety protected doors.


11. Small space is requirement.


12. Many options available upon request.




Specification :

Product  Corrugated tray former
Model no. RH-400
Power source AC220V, 3-phase
Speed 12 - 15 pcs / per minute
Air pressure 5 kg/cm2 / 71 psi
Machine dimension 2085 L x 1545 W x 1920 H mm






Applications :


Retail ready/Display ready packaging、Beverage、Frozen foods、Club store packaging 、Meat and poultry、Refrigerated/Fresh foods、consumer products and computer peripherals…and so on.

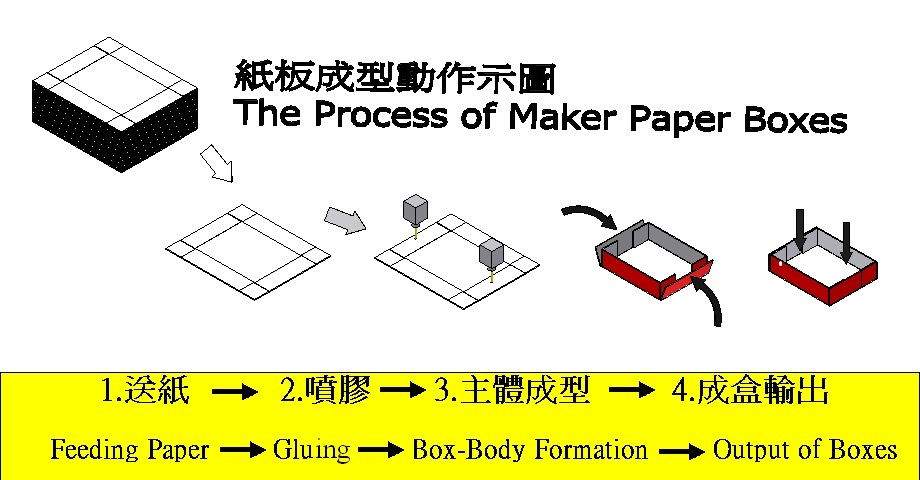

Process :

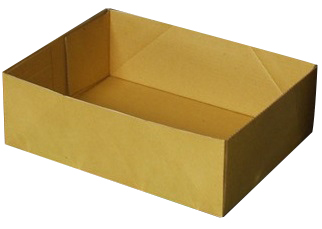

Packaging sample :
