Carton erector (Fold carton both sides) RH-206D
A blank corrugated carton or cardboard is folded by a machine to form a box.
_1526528130.jpg)
Features :
1. Painted steel construction.
2. Mechanical and pneumatic operation.
3. Fold various corrugated cartons or cardboards without any glues .
4. Small space is requirement.
5. To adjust sizes of carton or cardboard is easy and quick. It only need
10 - 15 minutes.
6. Fuji PLC control system with touch screen Mitsubishi HMI.
7. High speed PLC-controlled electric installation. The folding carton is
accurate.
8. Effectively working and reduce management cost.
9. Machine can move to anywhere at working place.
10. Safety protected door.
11. Carton magazine is around 250 - 300 mm
12. Carton size range :
W : 330 - 400 mm D : 150 - 195 mm H : 85 - 150 mm
13. Many options available upon request.
Specifications :
| Product | Carton erector (Fold carton both sides) |
| Model no. | RH-206D |
| Power source | AC220V, 3-Phase |
| Electronic | PLC |
| Air pressure | 5 kg/cm2 / 4.9 bar |
| Horsepower | 3HP |
| Machine dimension | 2000(L)*1340(W)*1690(H) mm |
Process :
Application :
Multi fields : Chemical 、Pharmaceutical 、Cosmetics 、Foods 、Beverages 、Electrics 、Hardware 、Household products 、Toy..and so on.
Packaging Samples :

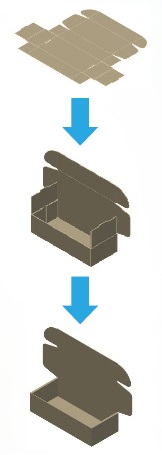

Flow chart : Box :
.jpg)
Carton erector can process following materials :
1. Carton board
2. Cardboard
3. Corrugated board
.jpg)
