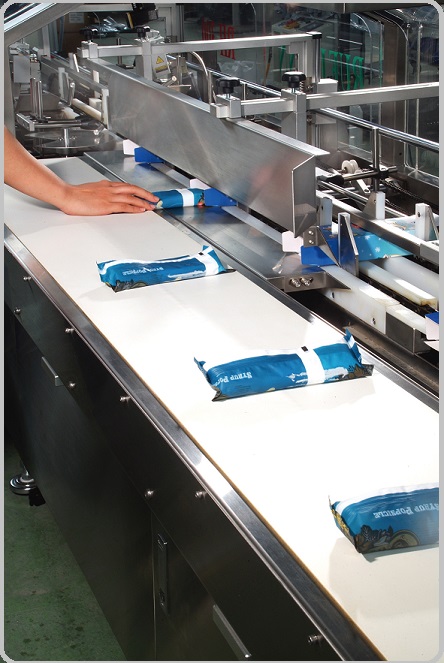

Horizontal continuous motion cartoner RH-300

Hand load and an affordable horizontal carton sealing solution.

Features :

1. Stainless steel construction.

2. Continuous motion lugged carton transfer system.

3. Compact frame.

4. Easy access drive system.

5. Casters and leveling feet.

6. Nordson® Mesa 4 hot melt glue system.

7. Fuji PLC control system with touch screen Mitsubishi HMI.

8. Quick Adjust.

9. Fully-interlocked barrier guard package.

10.Many options available upon request.

Specifications :

Product	Horizontal continuous motion cartoner
Model no.	RH-300
Speed	10-75 pcs / per minute
Power source	220V，50/60HZ
Horsepower	2HP
Power consumption	3KW
Machine weight	800 kgs. / 1764 lbs.
Operator	1-2 people
Machine dimension	3600(L)x1420(W)x1620(H) mm
Carton dimension	L ： 70-225 mm W：180-300 mm H ： 30-100 mm

Applications :

It is available for cookies , tissue , icy foods , Frozen foods , Foods .......and so on.

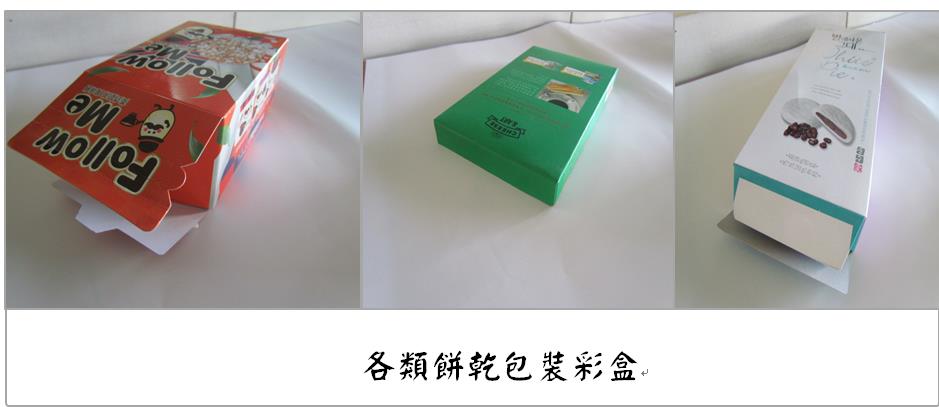

Packaging Samples :
