RH-302 Semi-Auto Sealing Box Machine

It is available for sealing front and rear tucks of boxes、small quantity and multiple boxes.
This machine is available for sealing both side boxes small

quantity and multiple boxes. It raise up packaging speed and

reduce cost.


Specifications :

Product Semi-Auto Sealing Box Machine
Model No. RH-302
Applocation 10-75PCS/MIN
Power Supply 220V/380V,50/60HZ
Ampere 16A
Motor 1HP
Power Consumption

3KW

Air Compresor 6KGF/CM2
Electronic Control

PLC



Features :

► This machine is available for sealing both side boxes、 small

     quantity and multiple boxes. It can raise up packaging speed and

     cost down.




This machine is available for sealing both side boxes、 small

quantity and multiple boxes. It can raise up packaging speed and

cost down.



► The speed of conveyor can adjust frequency at any time.


► Hot melt adhesive machine : We use professional USA NORDSON

    hot melt adhesive machine. This machine can directly open top

    cover    and the chunk of adhesive can be put into the tank

    directly without extra releasing pressure. It is easy to operate.This

    machine's quantuty is stable and good for glue working.


► Adopt high speed PLC and touch-screen control.



►This machine is available for multiple boxes and wide box sizes. It

    can be micro-adjustment. The conversion time is only 5 minutes.

    Machine size is small  、adjustment conveniently and using less

    air pressure. Machine is with wheels which easily move to

    anywhere.



► This machine is available for box sizes :

     L   : 40 - 255 mm

    W  : 130 - 305 mm

     H  :  20 - 110 mm

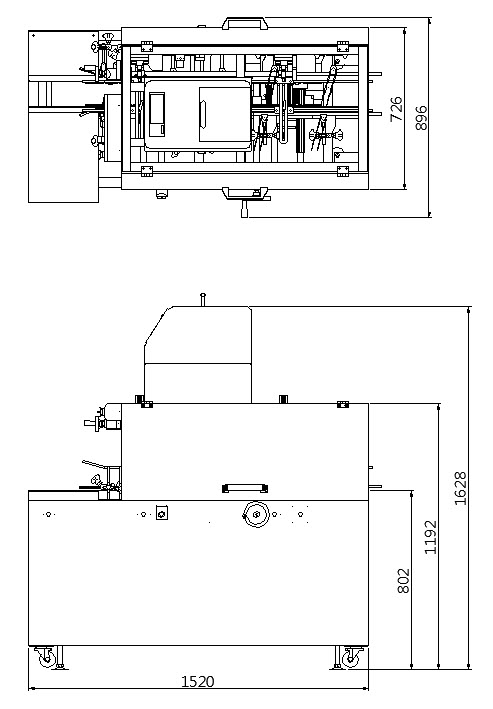

► Machine size : L1520 x W823 x H1660 mm

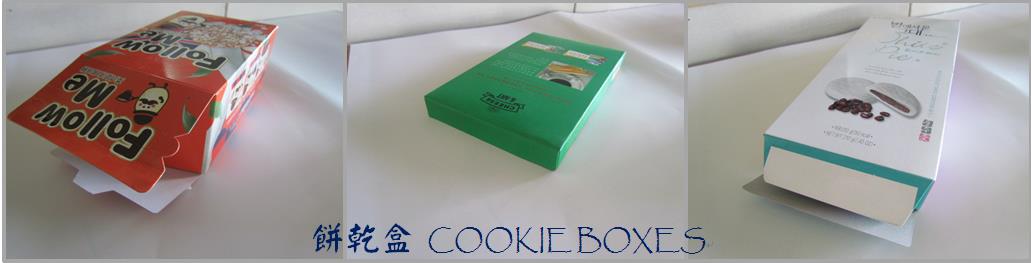

Packaging Samples ( Food Industry) :
