Carton erector (Fold pizza box) RH-206SB

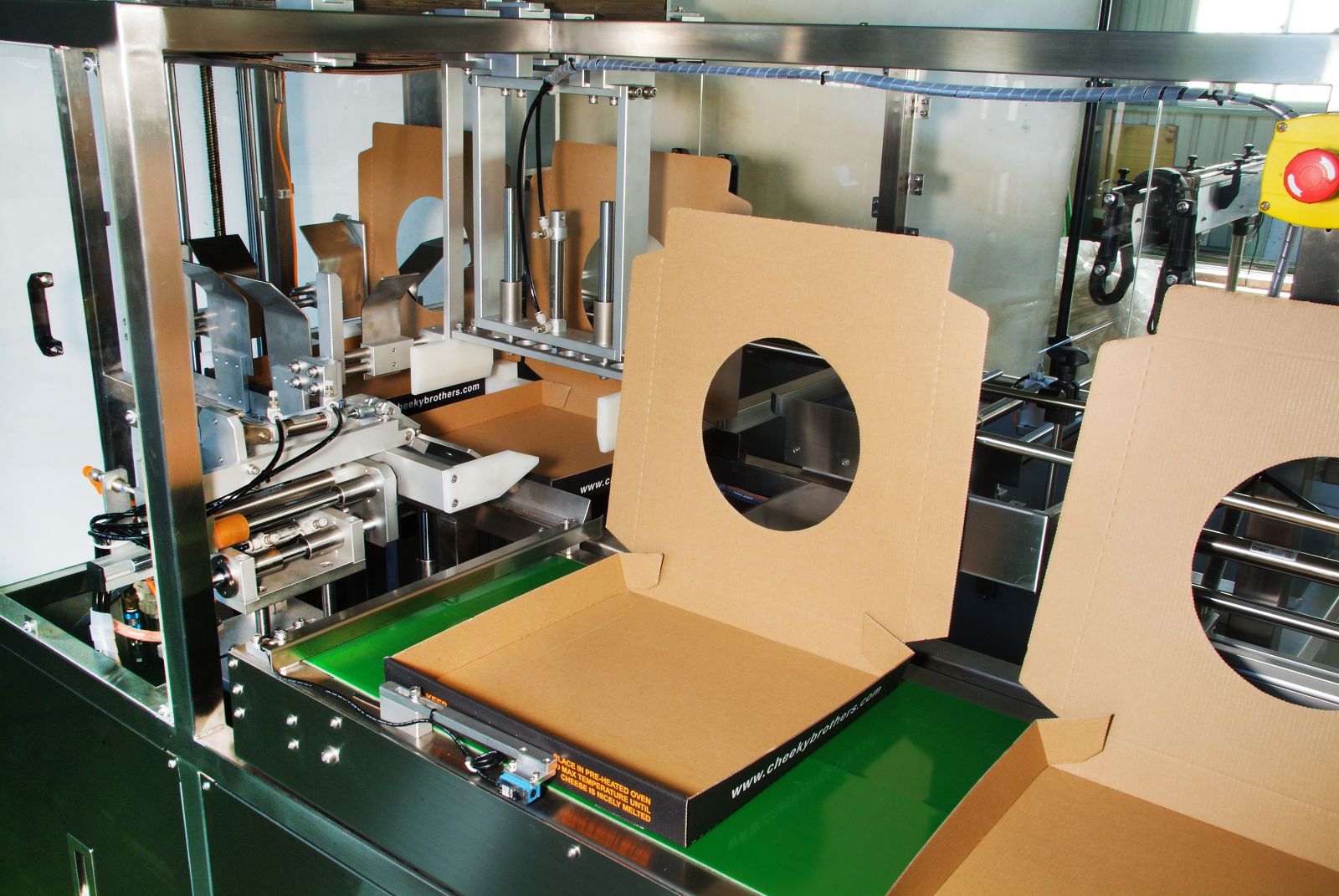

A blank corrugated carton is folded by a machine to be a pizza box.

Features :

1. Painted steel construction.

2. Mechanical and pneumatic operation.

3. Fold various corrugated cartons or cardboards without any glues .

4. Small space is requirement.

5. To adjust sizes of carton or cardboard is easy and quick. It only

need 10 - 15 minutes.

6. Fuji PLC control system with touch screen Mitsubishi HMI.

7. High speed PLC-controlled electric installation. The forming carton

is accurate.

8. Effectively working and reduce management cost.

9. Machine can move to anywhere at working place.

10. Safety protected door.

11. Carton magazine is around 250 - 300 mm

12. Carton size range :

W : 330 - 400 mm D : 150 - 195 mm H : 85 - 150 mm

13. Many options available upon request.

Specifications :

Product	Carton erector(Fold pizza box)
Model no.	RH-206SB
Power source	AC220V, 3-Phase
Electronic	PLC
Air pressure	5kg/cm2 / 4.9 bar
Horsepower	3HP
Machine dimension	*4285(L)1550(W)1990(H) mm*
Machine weight	600 Kgs./ 1323 Lbs.

1. Capacity : It is according to carton size.

2. Power : It is according to requirement from customers.

3. Carton size : It is according to requirement from customers.

Applications :

This machine suit for various pizza boxes.

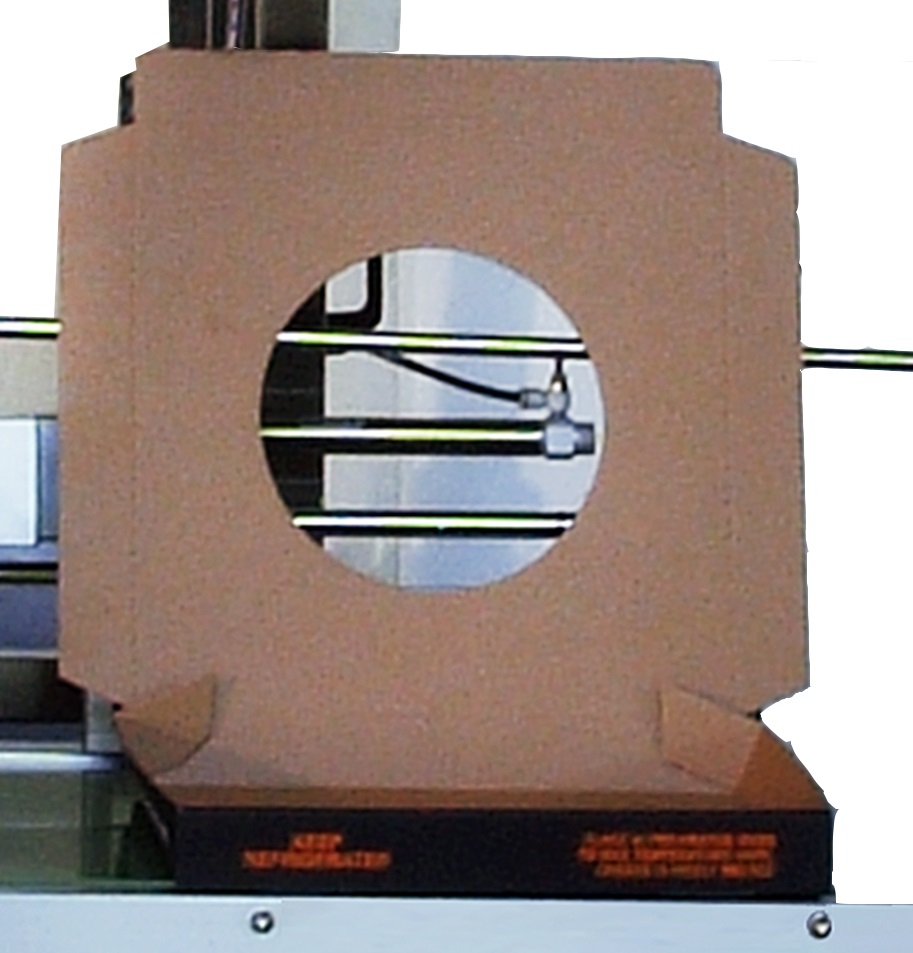

Packaging Samples :
